Budget ⌛ Apollo Valves 30LF Series 1 in. Bronze Full Port NPT Gate Valve 🎁

Name: Budget ⌛ Apollo Valves 30LF Series 1 in. Bronze Full Port NPT Gate Valve 🎁
SKU: 4162016
Availability: InStock

Original price was: $181.87.Current price is: $88.99.

SKU: 4162016 Category: Gate Valves Tag: Bronze

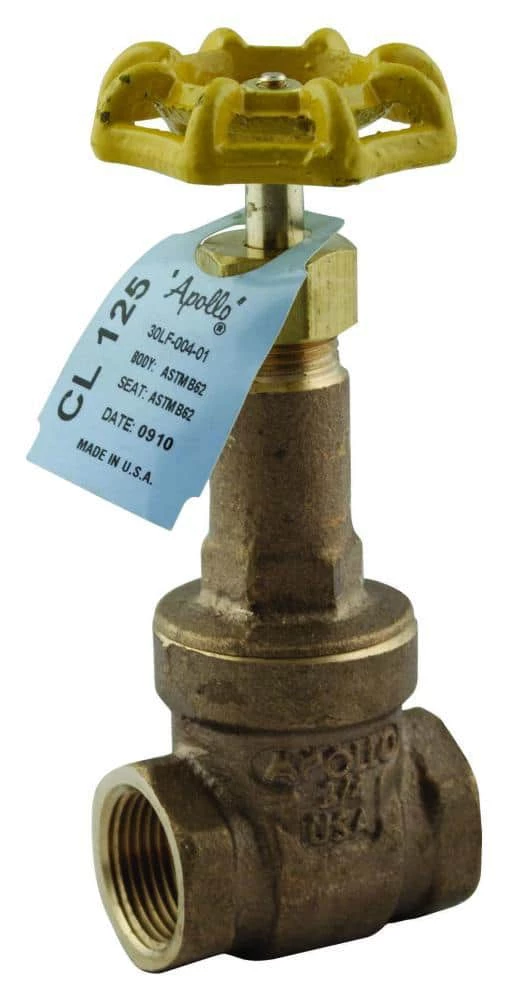

The Lead-Free apollo model 101T-LF (30LF series) gate valve provides a Made in USA alternative to globally sourced multi-turn valves

Guided solid bronze disc wedge

Adjustable graphite stem packing

100% factory tested

Back seat protection

Saturated steam 125 psi

Application commercial

Lead-Free

Made in USA

ASME Specifications	ASME B1.20.1
NSF Certified	Yes
Valve Type	Gate Valve
Valve Stem	Rising
Valve Size	1 in
Valve Port Opening	Full Port
Valve Operator	Wheel Handle
Valve Disc Material	Bronze
Valve Bonnet Type	Screw-in
Valve Body Material	Bronze
UL Listed	No
Recommended Valve Application	Water
Pressure Class	125#
NSF Specifications	NSF 372, NSF 61
Maximum Temperature	406
ASTM Specifications	ASTM B-584
Material	Bronze
MSS Specifications	MSS SP-139, MSS SP-80
Length	2-3/4 in
Lead Law Compliant	Yes
ISO Specifications	ISO 9001
High Pressure	200
Height	6-22/31 in
Handle Material	Malleable Iron
FM Approved	No
End Connections	NPT
End Connection 2	NPT
End Connection 1	NPT
Collection	30LF Series
Weight	2.16
