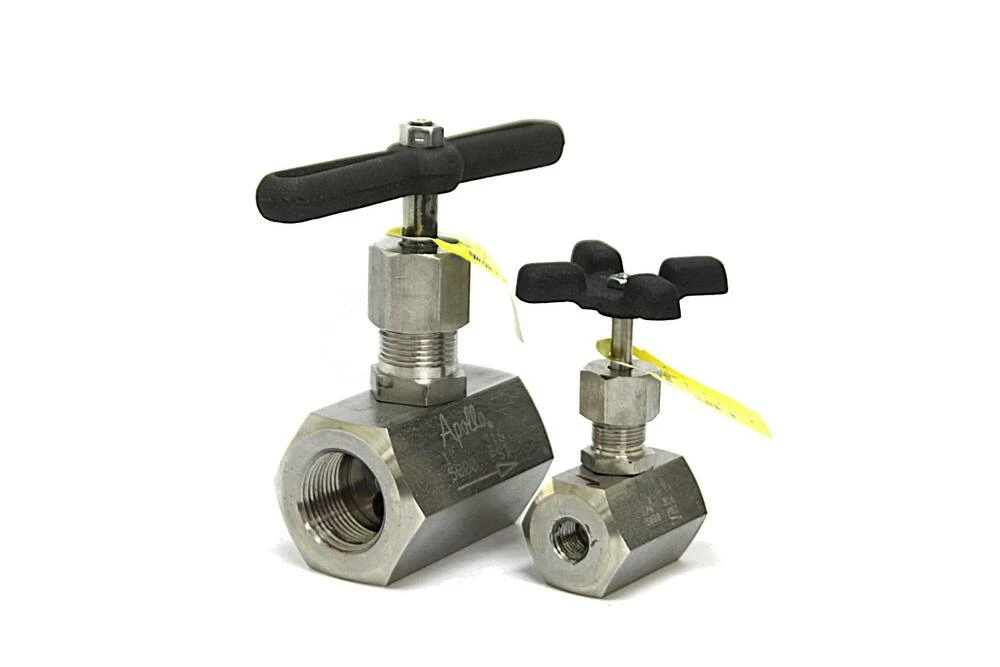

Top 10 💯 Apollo Valves 60A Series 3/8 in. FNPT Barstock Globe Valve with Graphoil Packing 👏

Name: Top 10 💯 Apollo Valves 60A Series 3/8 in. FNPT Barstock Globe Valve with Graphoil Packing 👏
SKU: 4385806
Availability: InStock

Original price was: $87.84.Current price is: $61.49.

SKU: 4385806 Category: Globe Valves

Backseat stem design reduces pressure exerted on the packing, prolonging packing life

Designed also prevents stem from being accidentally turned out of the valve

Integral metal-to-metal seat design

Externally adjustable PTFE packing is standard, graphoil available

Meets NACE MR-01-75

All valves 100% pressure tested

ASTM Specifications	ASTM A-108, ASTM A-276, ASTM A-47, ASTM B-484, ASTM B-525
Maximum Temperature	100
Valve Type	Globe Valve
Valve Size	3/8 in
Valve Seat Material	Metal
Valve Operator	Cross Handle
Valve Bonnet Type	Threaded
Valve Body Material	Carbon Steel
UL Listed	No
Temperature Range	-50 to 1000 Deg F (-46 to 538 Deg C)
NSF Certified	No
MSS Specifications	MSS SP-105, MSS SP-99
Collection	60A Series
Length	2-1/4 in
ISO Specifications	ISO 9001:2008
IAPMO Listed	No
High Pressure	5000
Handle Material	Malleable Iron
FM Approved	No
End Connections	FNPT
End Connection 2	FNPT
End Connection 1	FNPT
Weight	1.19
