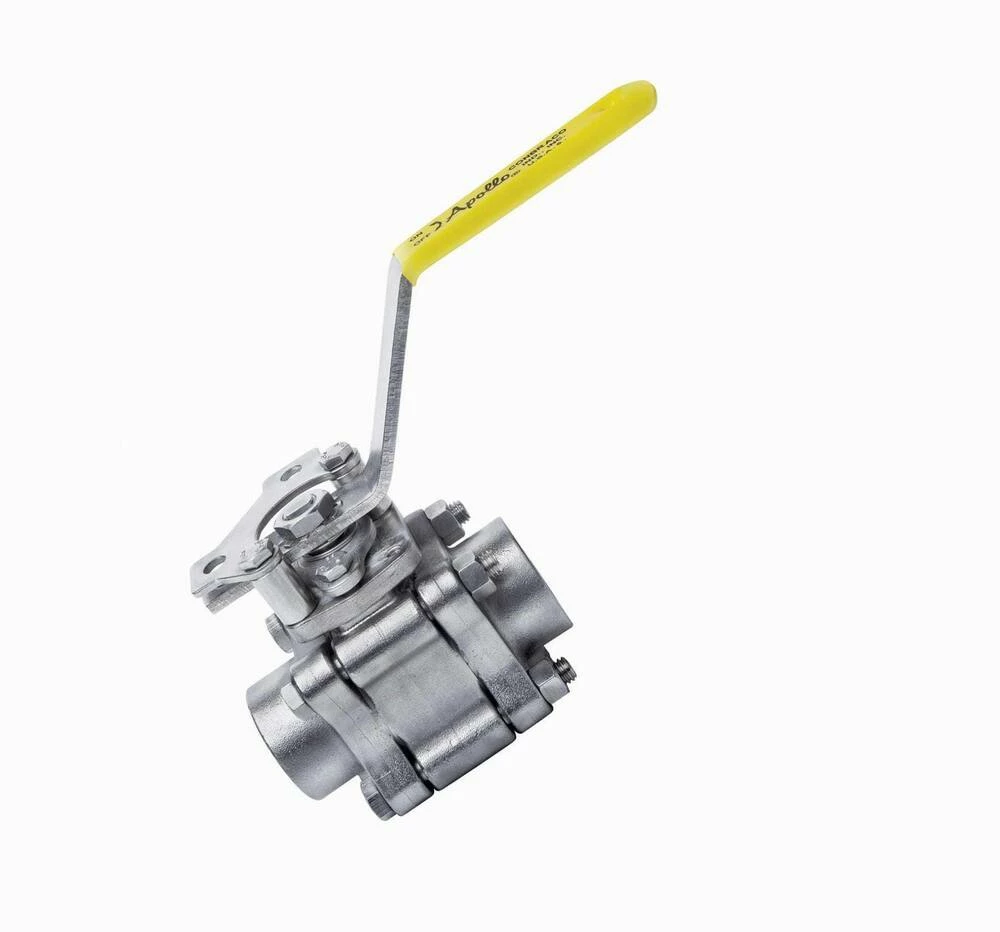

Brand new 😍 Apollo Valves 86B-100 Series 1 in. Stainless Steel Full Port NPT 600# Ball Valve 🧨
Original price was: $584.21.$98.99Current price is: $98.99.
- Free Shipping over $25
- Online customer care, always here for you.
- Multiple payment methods, 100% payment security
- Your Security is Our Promise
| ANSI Specifications | No |
|---|---|
| Temperature Range | -20 to 600 Deg F |
| Material Type | CF8M |
| Maximum Pressure | 1500 psi |
| Maximum Temperature | 550 |
| Minimum Temperature | -20 |
| NEMA Specifications | No |
| NSF Certified | No |
| NSF Specifications | No |
| Number Of Pieces | 1 Piece |
| Number of Handles | Single Handle |
| Origin | Domestic |
| Pressure Class | 600# |
| Recommended Valve Application | Steam, Water |
| TIS Specifications | No |
| Temperature Rating | 600 |
| MSS Specifications | MSS SP-110 |
| UL Listed | No |
| Valve Body Material | Stainless Steel |
| Valve Body Style | 3 piece |
| Valve Disc Material | Stainless Steel |
| Valve Material | Stainless Steel |
| Valve Operator | Lever Handle |
| Valve Port Opening | Full Port |
| Valve Seat Material | MPTFE |
| Valve Size | 1 in |
| Valve Stem | Blowout-proof |
| Valve Type | Ball Valve |
| Weight | 5.7 |
| Width | 2-67/100 in |
| Material | Stainless Steel |
| MA Approved | No |
| API Specifications | API 608 |
| End Connection 1 | NPT |
| ASME Specifications | ASME B1.20.1, ASME B16.3, ASME B16.34 |
| ASSE Standards | No |
| ASTM Specifications | ASTM A-193 Grade B8M3, ASTM A-194 Grade 8, ASTM A-276 Grade 316SS, ASTM A-351 Grade CF3M, ASTM A-351 Grade CF8M, ASTM A-564 17-4PH |
| AWWA Specifications | No |
| Application | Commercial |
| BAA Compliant | Yes |
| CARB OTC LEED Compliant | No |
| CE Approved | No |
| CSA Certified | No |
| Clean Bagged | No |
| Collection | 86B-100 Series |
| Color Finish | Stainless Steel |
| EPA Compliant | No |
| End Connection 2 | NPT |
| Low Pressure | 29 |
| End Connections | NPT |
| FM Approved | No |
| GSA Approved | No |
| Handle Included | Yes |
| Handle Length in | 6-53/100 in |
| Handle Material | Stainless Steel |
| Handle Type | Lever |
| Hardware Included | No |
| Height | 2-4/5 in |
| IAPMO Listed | No |
| ISO Specifications | ISO 5211 |
| Lead Law Compliance Level | Not Approved for Potable Water Applications |
| Length | 4-19/100 in |
| cUPC Certified | No |
