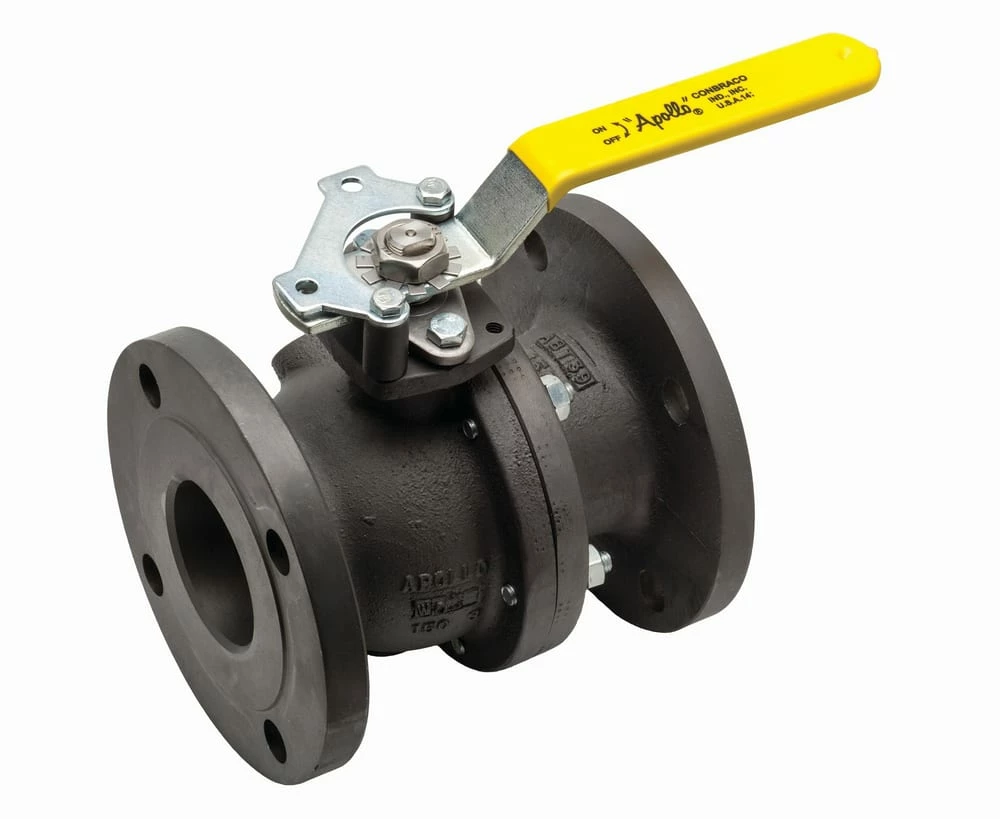

New 🛒 Apollo Valves 88A-100 Series 1-1/2 in. Carbon Steel Standard Port Flanged 150# Ball Valve 🛒

Original price was: $590.20.Current price is: $92.99.

SKU: 1281884 Category: Ball Valves Tag: Carbon Steel

Free Shipping over $25
Online customer care, always here for you.
Multiple payment methods, 100% payment security
Your Security is Our Promise

Two position locking device (valves 6 in. full port, 8 in. standard port and smaller)

Chevron style adjustable stem seals

Four point ISO 5211 mounting pad bolt pattern

Slot vented ball for thermal expansion

Rated up to 150 psig saturated steam: ASME class 150, 300, & 600 valves

Anti-static grounded ball and stem

Blow-out proof stem design

Cast boss for bleed / drain port

Vacuum service to 29 in. of Hg

NACE MR0175-2000 compliance on all 87A/87B

API Specifications	API 608
Material	Carbon Steel
Valve Type	Ball Valve
Valve Stem	Blowout-proof
Valve Size	1-1/2 in
Valve Seat Material	RPTFE
Valve Port Opening	Standard Port
Valve Operator	Lever Handle
Valve Body Style	Flanged
UL Listed	No
Pressure Class	150#
NSF Certified	No
Length	6-1/2 in
ASME Specifications	ASME B16.34, ASME Class 150
ISO Specifications	ISO 5211
IAPMO Listed	No
Handle Material	Steel
FM Approved	No
End Connections	Flanged
End Connection 2	Flanged
End Connection 1	Flanged
Collection	88A-100 Series
Clean Bagged	No
ASTM Specifications	ASTM A-108 Type 1215, ASTM A-193 Grade B7, ASTM A-194 Grade 2H, ASTM A-216 Grade WCB, ASTM A-276, ASTM A-366
Weight	9
