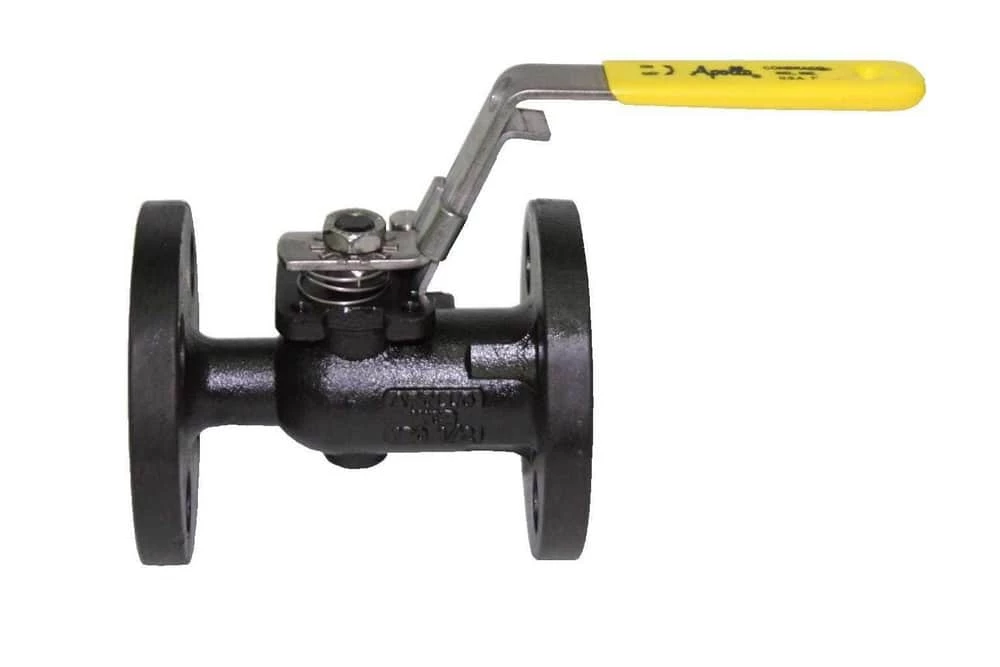

Brand new 💯 Apollo Valves 88A-200 Series 6 in. Carbon Steel Full Port Flanged 150# Ball Valve 💯

Name: Brand new 💯 Apollo Valves 88A-200 Series 6 in. Carbon Steel Full Port Flanged 150# Ball Valve 💯
SKU: 3386442
Availability: InStock

Original price was: $461.00.Current price is: $94.99.

SKU: 3386442 Category: Ball Valves Tag: Carbon Steel

Two position locking device (valves 6 in. full port, 8 in. standard port and smaller)

CHV style adjustable stem seals

Four point ISO 5211 mounting pad bolt pattern

Slot vented ball for thermal expansion

Anti-static grounded ball and stem

Blow-out proof stem design

Cast boss for bleed/drain port

Vacuum service to 29 in. of Hg

Rated up to 150 psig saturated steam: ASME Class 150, 300, & 600 valves

ANSI Specifications	ANSI 372, ANSI 61
Material Type	A216-WCB
Valve Type	Ball Valve
Valve Stem	Blowout-proof
Valve Size	6 in
Valve Seat Material	RPTFE
Valve Port Opening	Full Port
Valve Operator	Lever Handle
Valve Body Style	Flanged
UL Listed	No
Recommended Valve Application	Gas, Water
Pressure Class	150#
NSF Specifications	NSF 372, NSF 61
NSF Certified	Yes
Material	Carbon Steel
API Specifications	API 607, API 608
Length	15-1/2 in
ISO Specifications	ISO 10497-5:2004, ISO 10497:2010, ISO 5211
IAPMO Listed	No
Handle Material	Steel
FM Approved	No
End Connections	Flanged
End Connection 2	Flanged
End Connection 1	Flanged
Collection	88A-200 Series
Clean Bagged	No
ASTM Specifications	ASTM A-108 Type 1215, ASTM A-193 Grade B7, ASTM A-194 Grade 2H, ASTM A-216 Grade WCB, ASTM A-276, ASTM A-366
ASME Specifications	ASME B16.10, ASME B16.33, ASME B16.34, ASME B16.38, ASME B16.5, ASME B31.1, ASME B31.3, ASME B31.8
Weight	248
