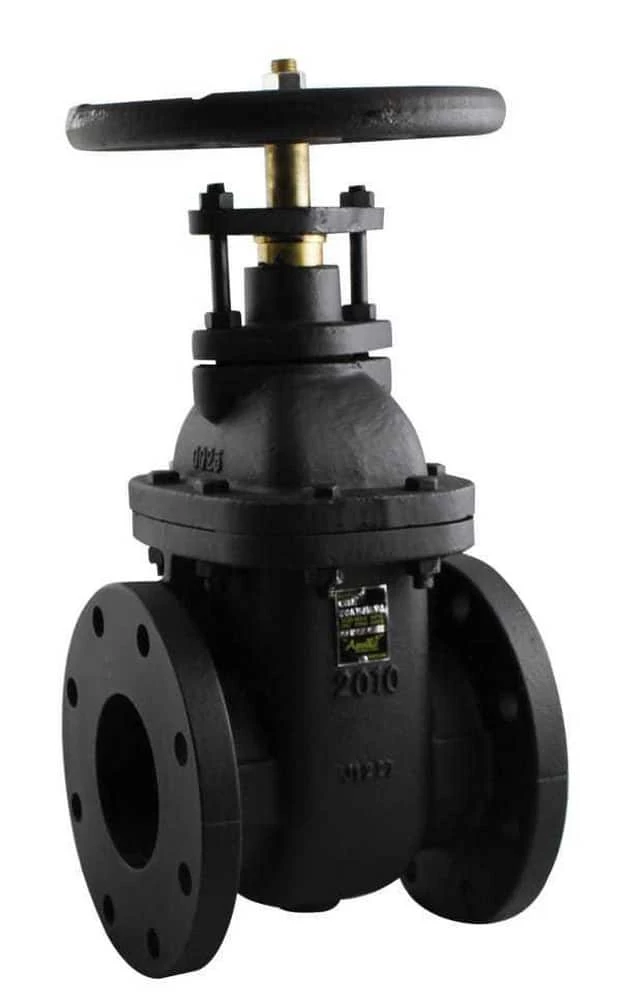

Wholesale ✔️ Apollo Valves Model 611F-LFA 20 in. Cast Iron Full Port Flanged Gate Valve 😍

Name: Wholesale ✔️ Apollo Valves Model 611F-LFA 20 in. Cast Iron Full Port Flanged Gate Valve 😍
SKU: 7636998
Availability: InStock

Original price was: $146.15.Current price is: $95.99.

SKU: 7636998 Category: Gate Valves Tag: Bronze, Cast Iron

Compatible with ANSI 125# & 150# flanges

Full port

Bronze mounted seat rings/trim

Solid wedge

Adjustable graphite stem packing

Outside screw & yoke

Flanged connection

Bolted bonnet

Rugged iron hand wheel

Back seat protection

ANSI Specifications	ANSI 125, ANSI 372, ANSI 61
NSF Specifications	NSF 372, NSF 61
Valve Type	Gate Valve
Valve Stem	Outside
Valve Size	20 in
Valve Seat Material	Bronze
Valve Port Opening	Full Port
Valve Operator	Hand Wheel
Valve Disc Material	Bronze
Valve Bonnet Type	Bolted
Valve Body Material	Cast Iron
Temperature Range	-20 to 406 Deg F
Recommended Valve Application	Cold Working Pressure, Commercial, Steam
Pressure Class	125#
NSF Certified	Yes
ASME Specifications	ASME B16.10
Material	Bronze, Cast Iron
MSS Specifications	MSS SP-70 Type 1
Length	18 in
Lead Law Compliant	Yes
High Pressure	125, 200
Handle Material	Cast Iron
End Connections	Flanged
End Connection 2	Flanged
End Connection 1	Flanged
Collection	Model 611F-LFA
Coating	Epoxy Powder
ASTM Specifications	ASTM A-126 Grade B, ASTM A-307 Class B, ASTM A-536 Grade 65-45-12
Weight	2238
